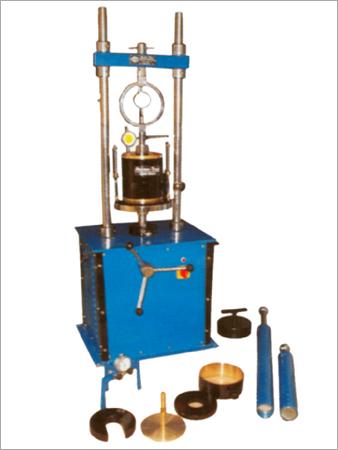

Laboratory C.B.R. Apparatus


Complete with Load frame, Hand Operated/Electrically Operated 5000 Kg capacity, C.B.R. Mould, Penetration Piston, Perforated Plate, Displacer Block, Anuular/Slotted Metal Weight 2.5 kg, Metal Tripod Stand, Rammer 2.6 kg/4.89 kg., with Calibration Certificate.

Optional Accessories :

  • C.B.R. Mould,150 mm dia X 175 mm high with extension collar & perforated base plate. Mild steel.
    Made of Gunmetal
    Made of Mild-Steel
    Same as above but Zinc Plated
  • Penetration Piston, face dia 50 mm with adjustable bracket.
  • Perforated plate, 148 mm dia with adjustable stem and lock nut gunmetal.
  • Displacer block, 148 mm dia X 47.7 mm high with detachable handle.
  • Annular metal weight, 2.5 kg, 147 mm dia with 53 mm dia central hole.
  • Slotted metal weight, 2.5 kg, 147 mm dia with 53 mm dia slot.
  • Metal tripod stand for dial gauges.
  • Cutting collar with chromium plating.
  • Rammer 2.6 kg weight with a drop of 310mm
  • Rammer 4.89 kg with weight with a drop of 410mm.
  • High sensitivity proving ring,1000 kg capacity fitted with 0.002mm dial gauge with calibration certificate in a nice teakwood case.
  • Dial gauge 0.01mm X 25mm travel.
  • Annular metal weight 5kg 147 mm dia 53 mm dia central hole.
  • Slotted metal weight 5 kg 147 mm dia 53 mm dia slot.
